TATOU'S GP-18 PRO

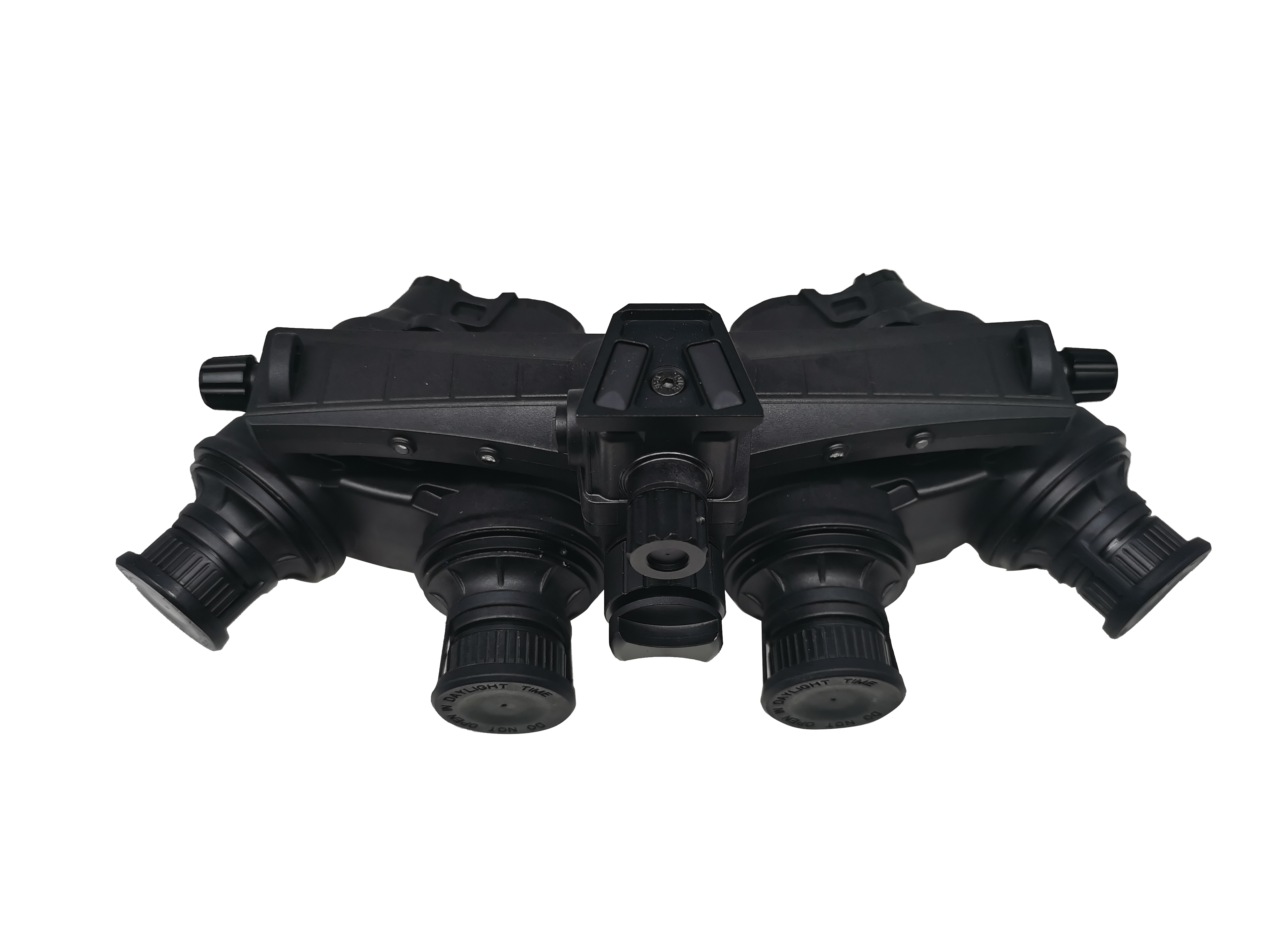

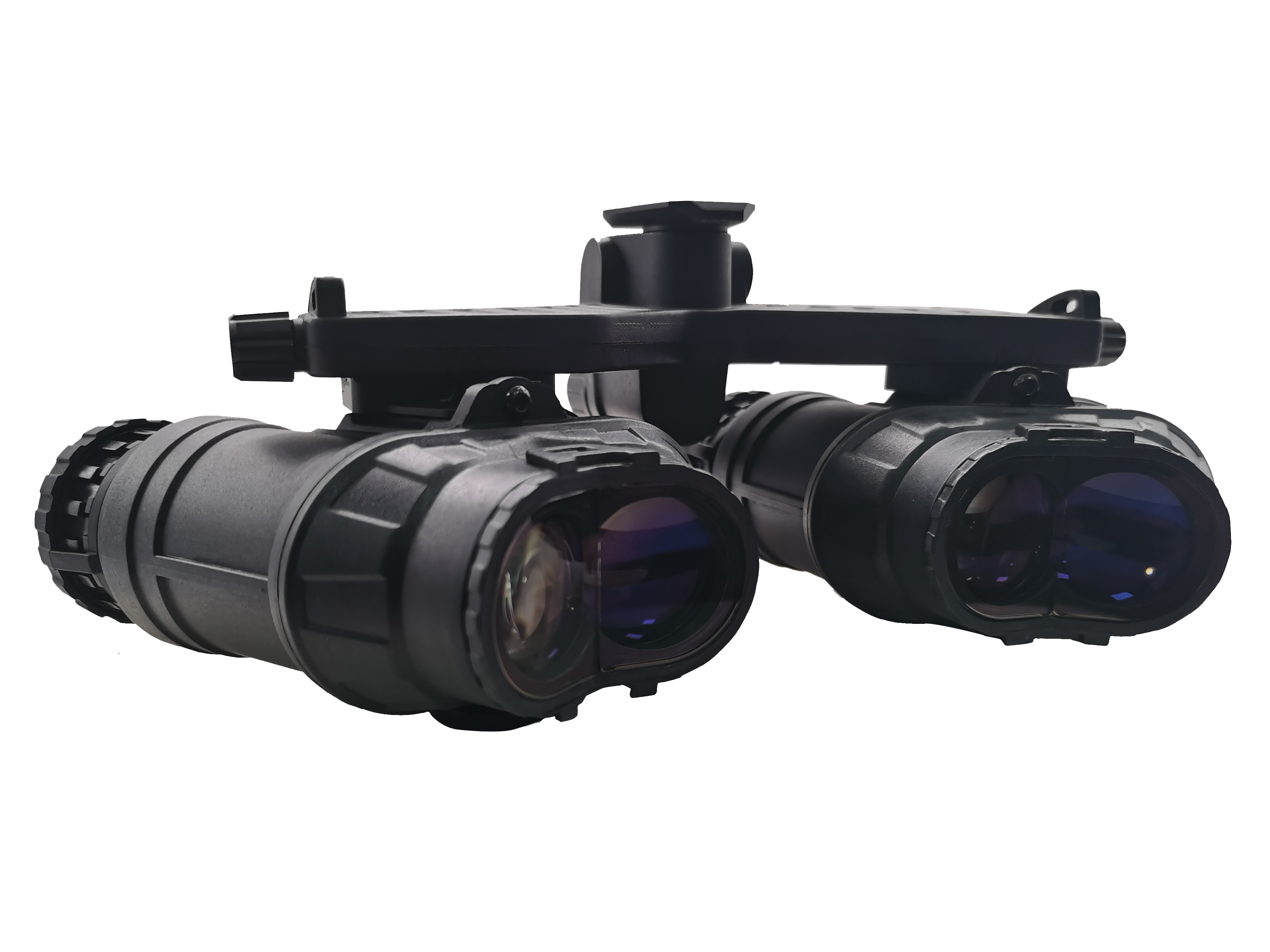

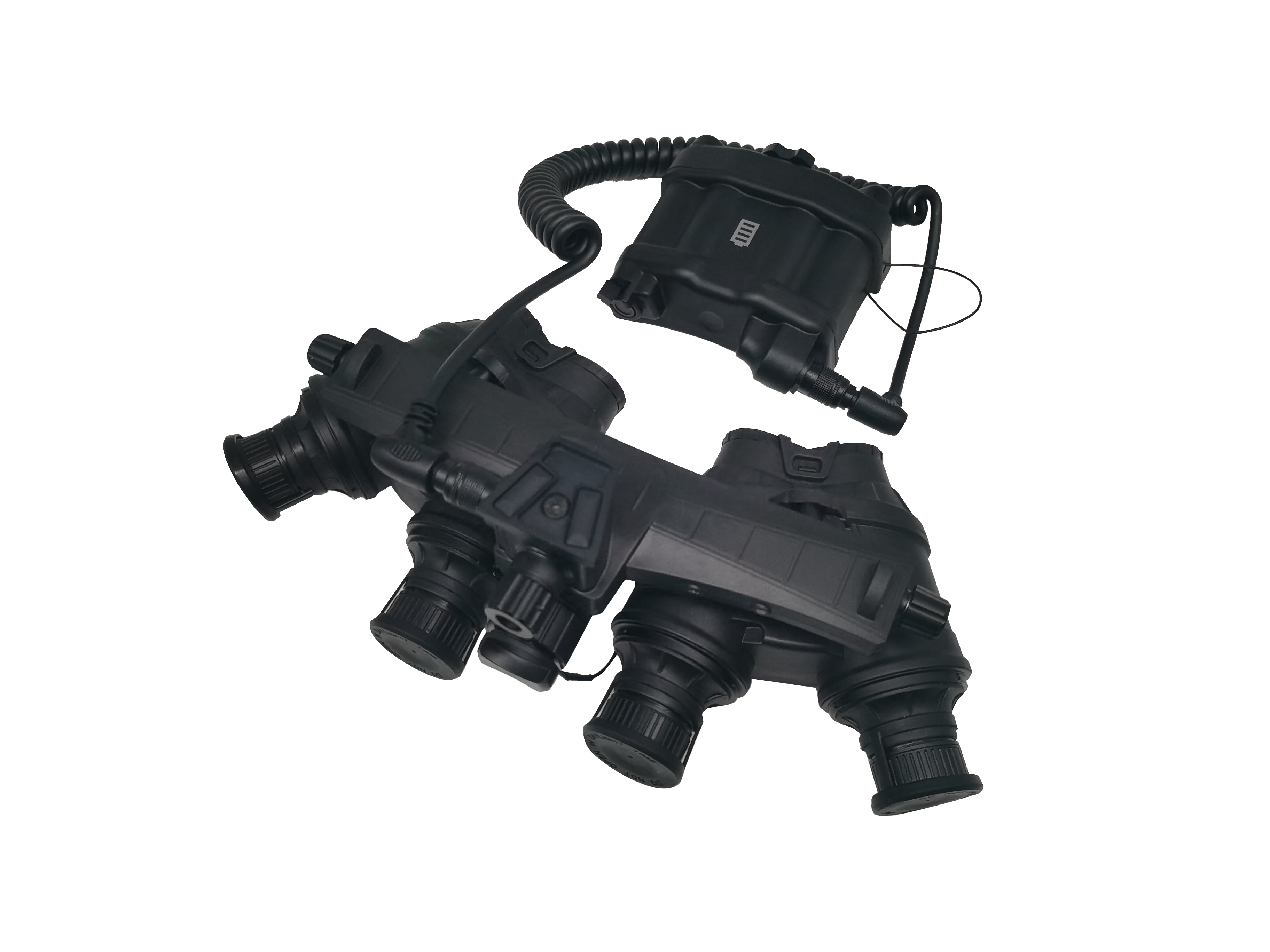

Tatou's GP-18 pro NVG is a high-performance Ground Panoramic Night Vision Goggles. The purpose of the GPNVG is to provide the operator more information under goggles, allowing him to more quickly move through the OODA Loop (Observe, Orient, Decide, Act). The most striking feature of the GPNVG is the presence of four separate image in tensifier tubes with four separate objective lenses arrayed in a panoramic orientation.

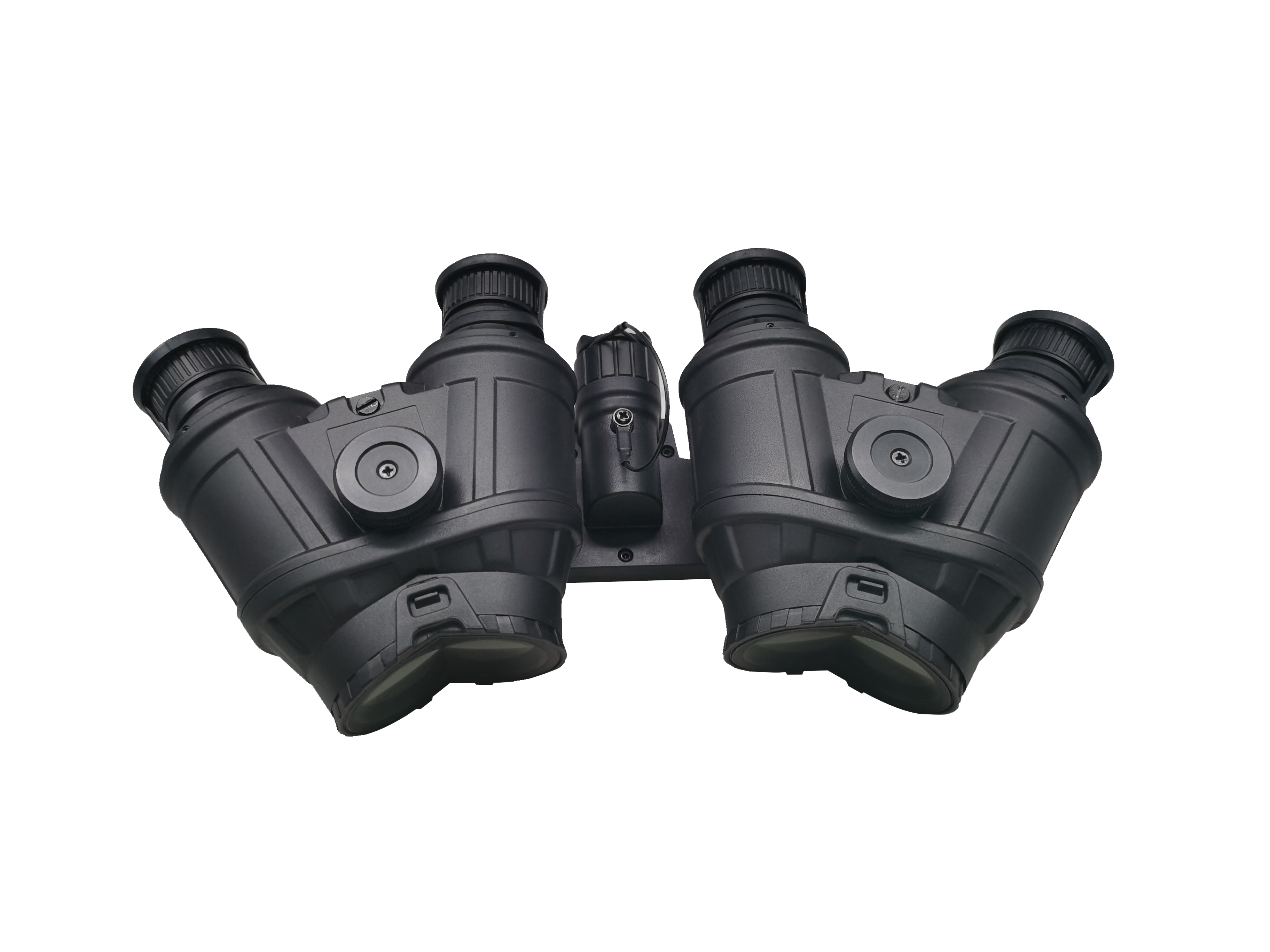

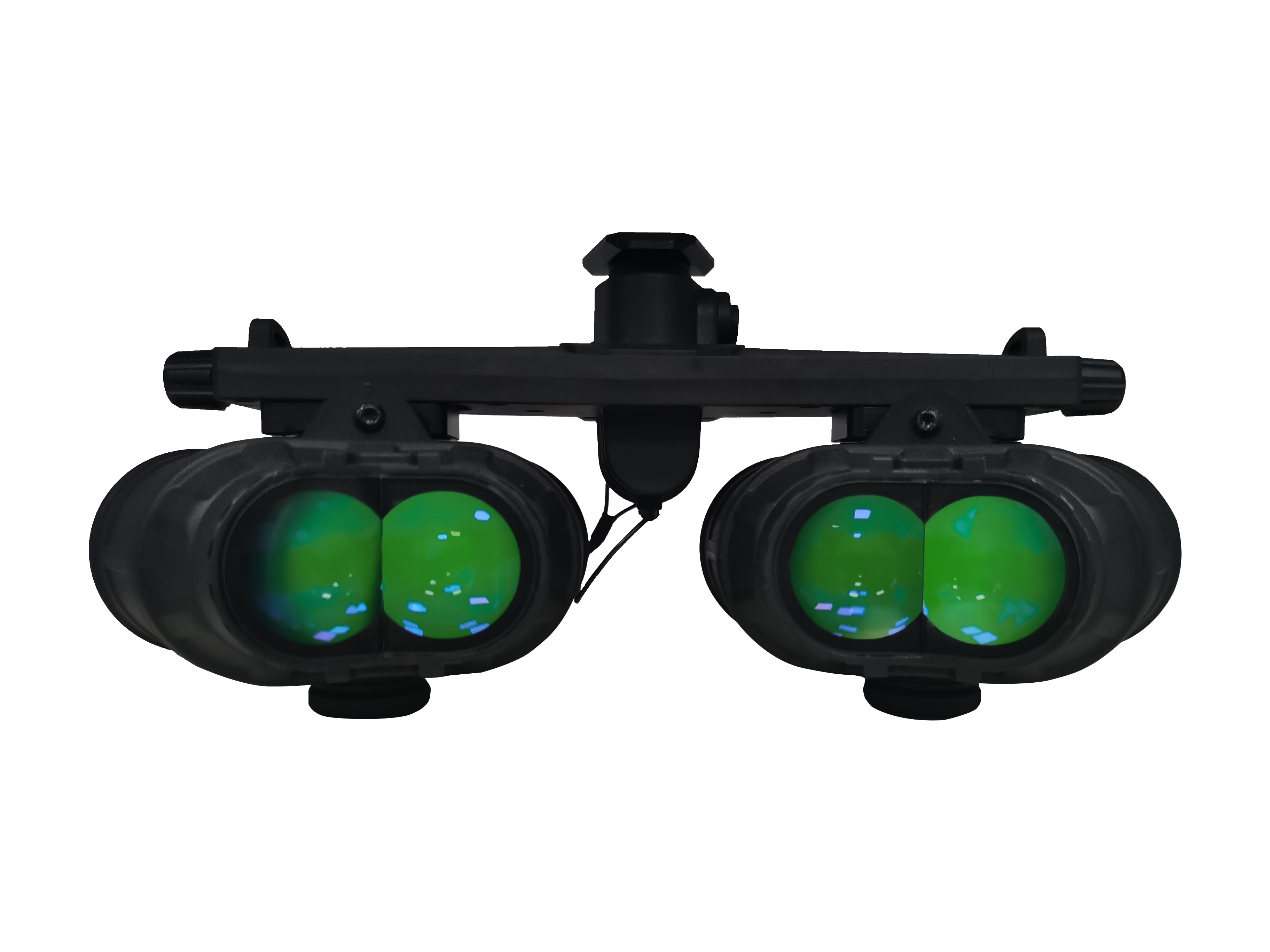

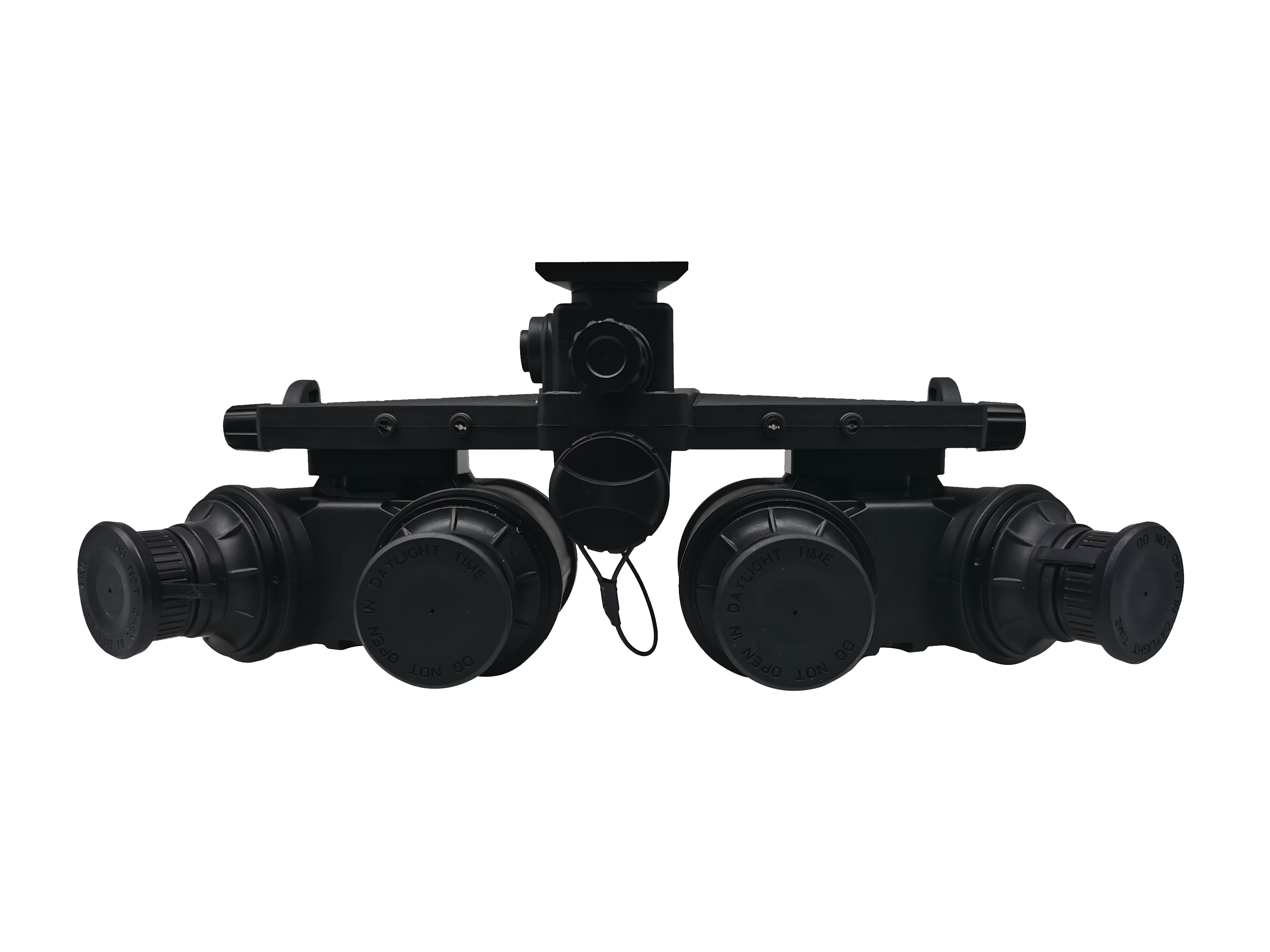

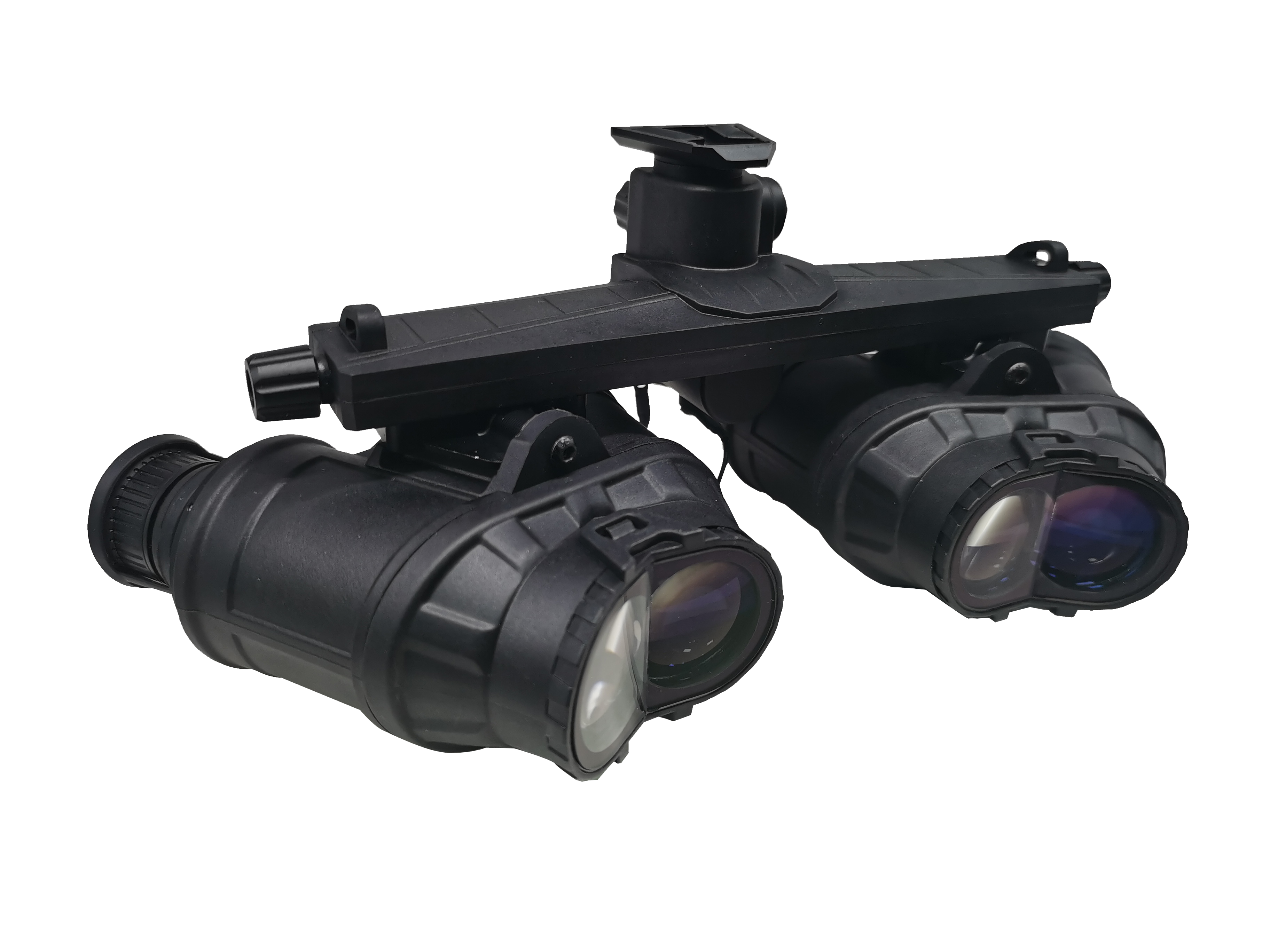

The center two lenses point forward like traditional dual-tube goggles, giving the operator more depth perception, while two more tubes points lightly outward from the center to increase peripheral view. The two tubes on the right and the two on the left are spliced at the eyepieces. The operator sees the two center tubes somewhat overlapping the two outer tubes to produce an unprecedented 120°FOV.

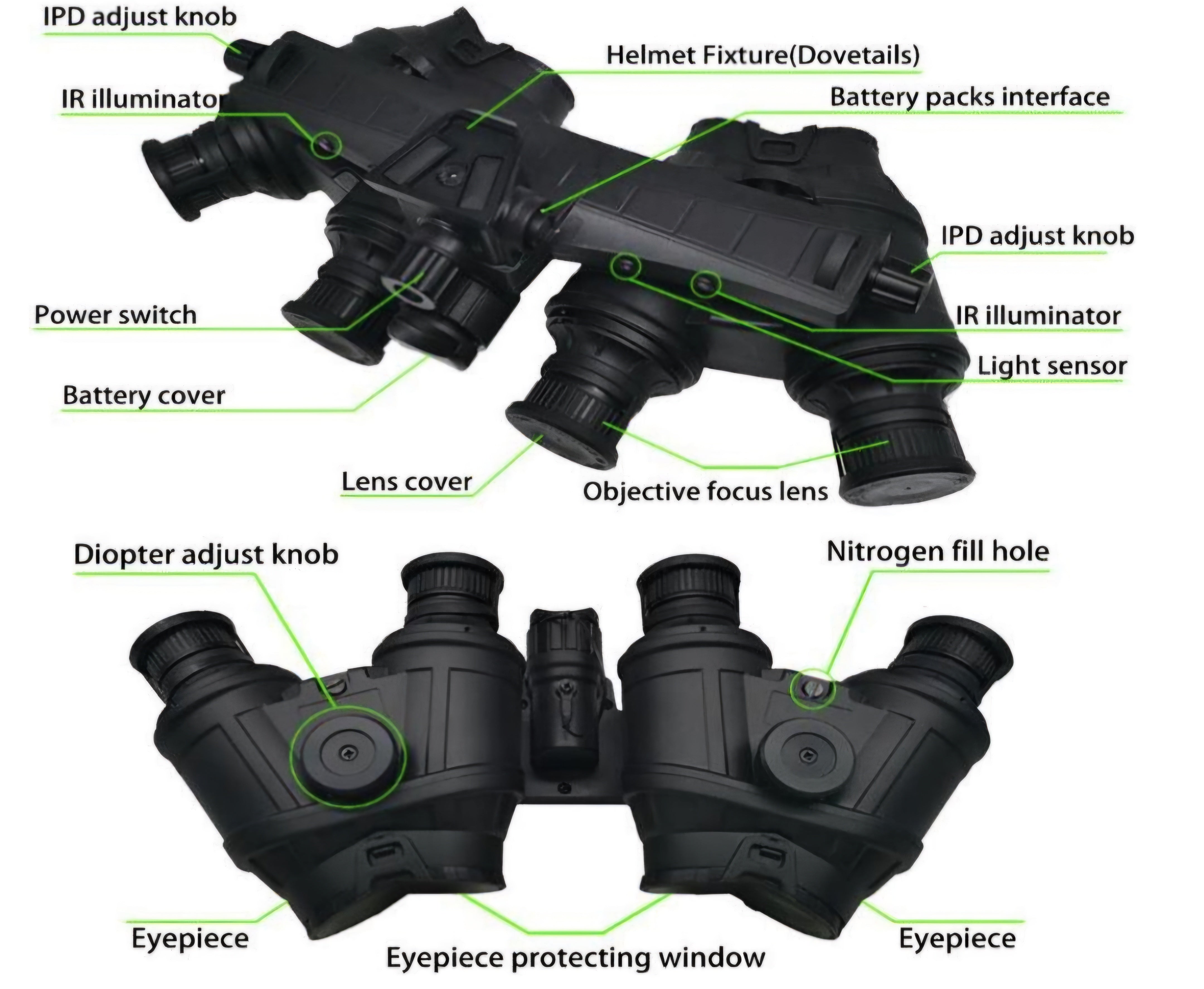

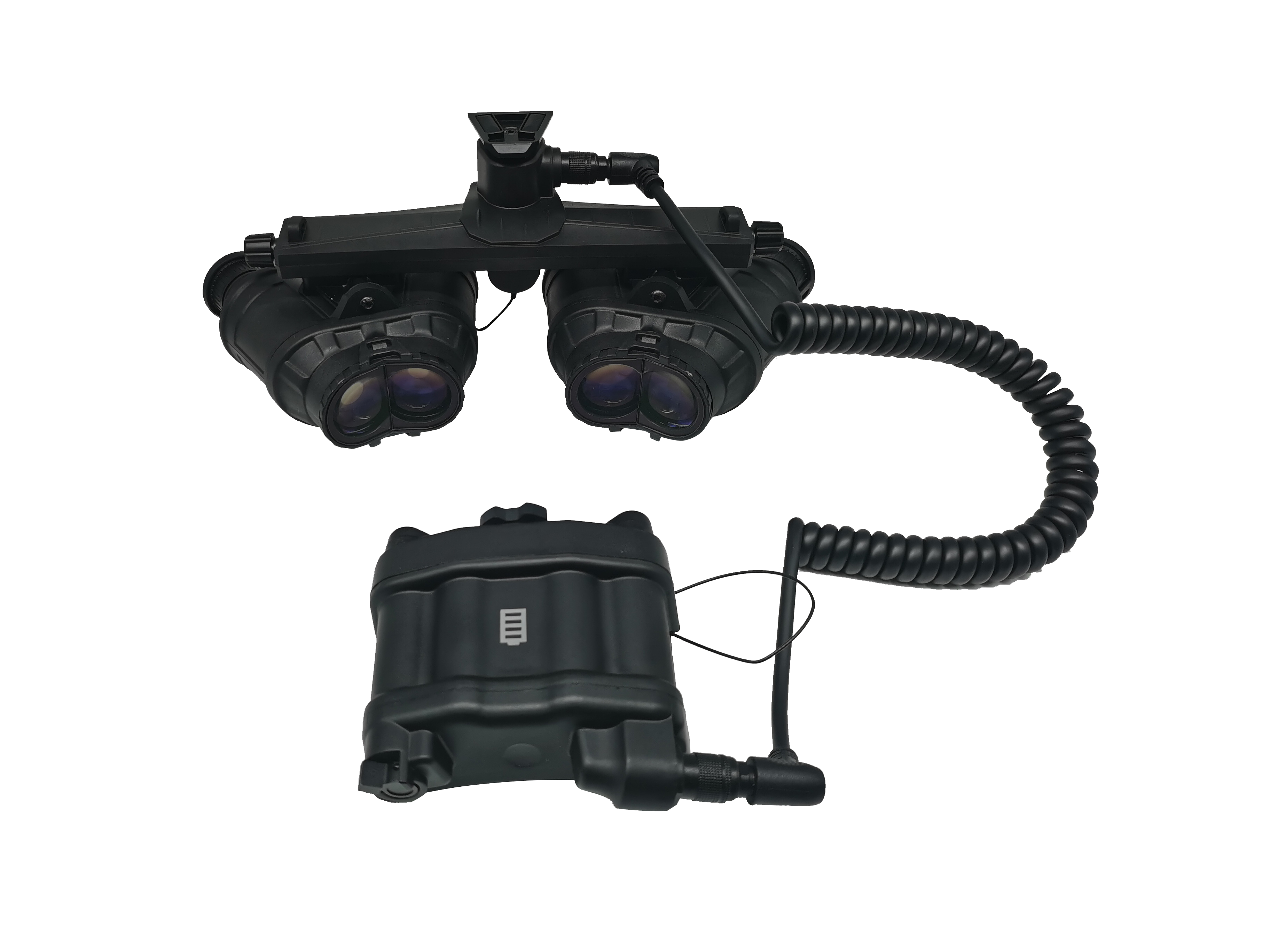

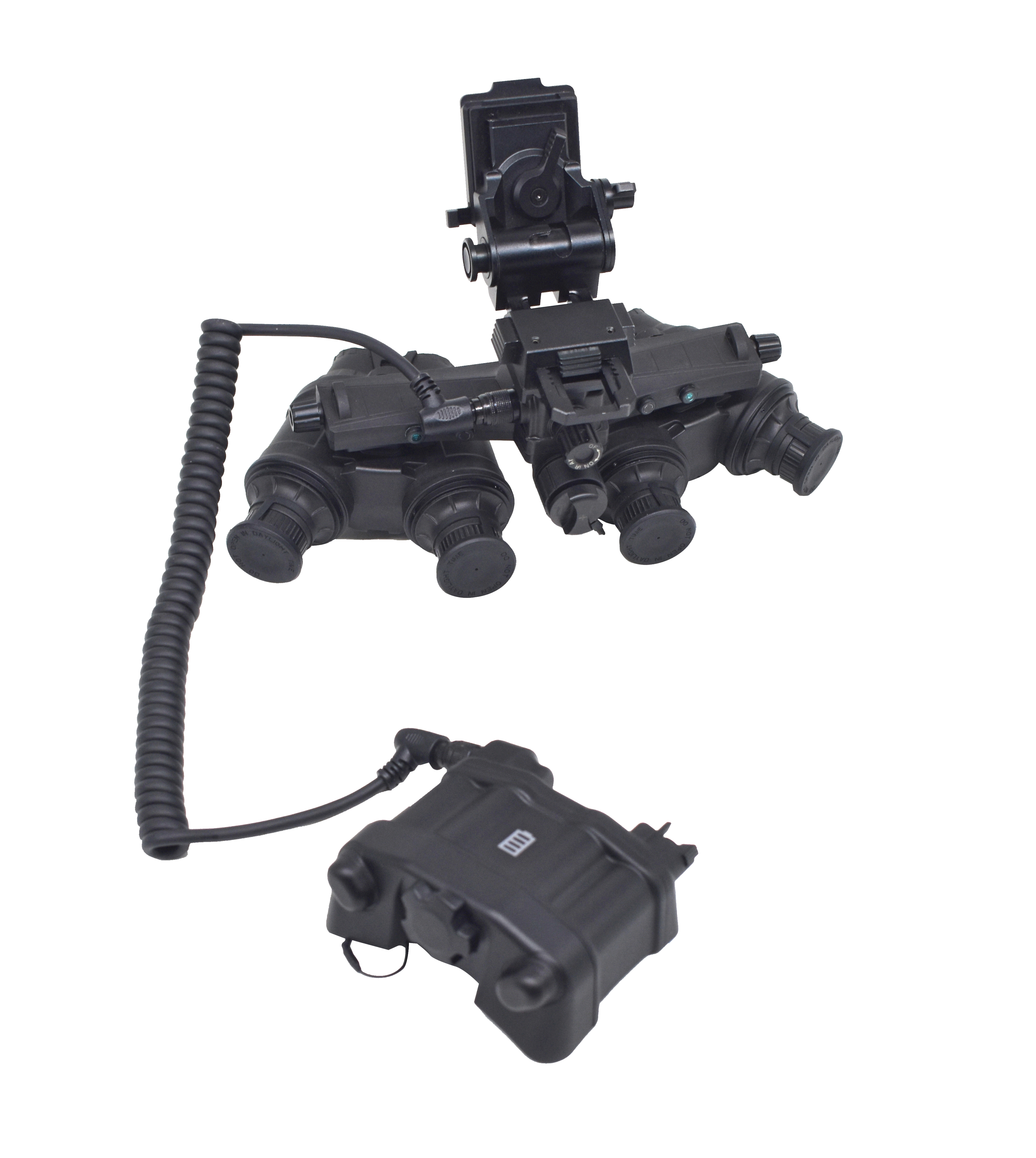

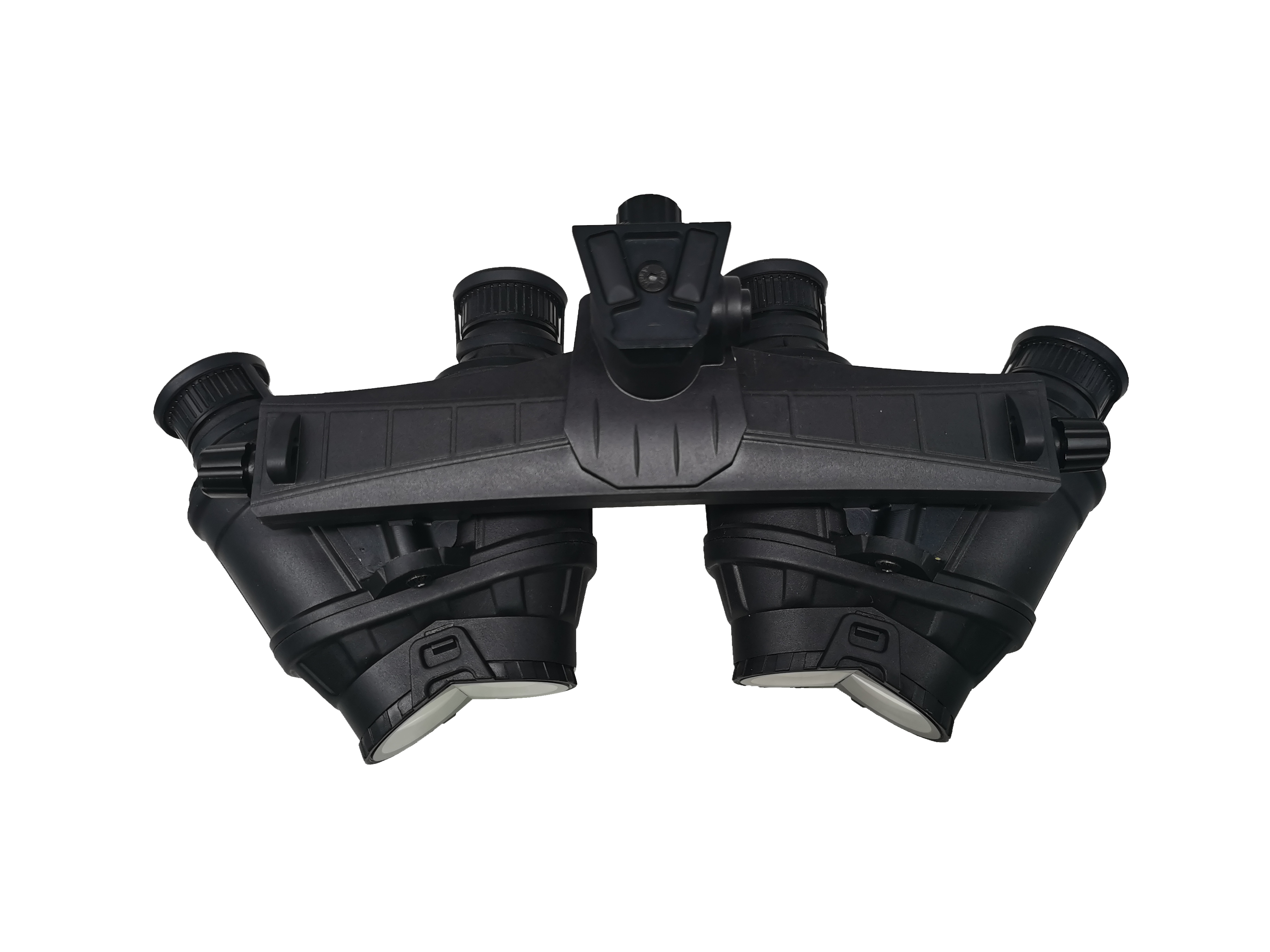

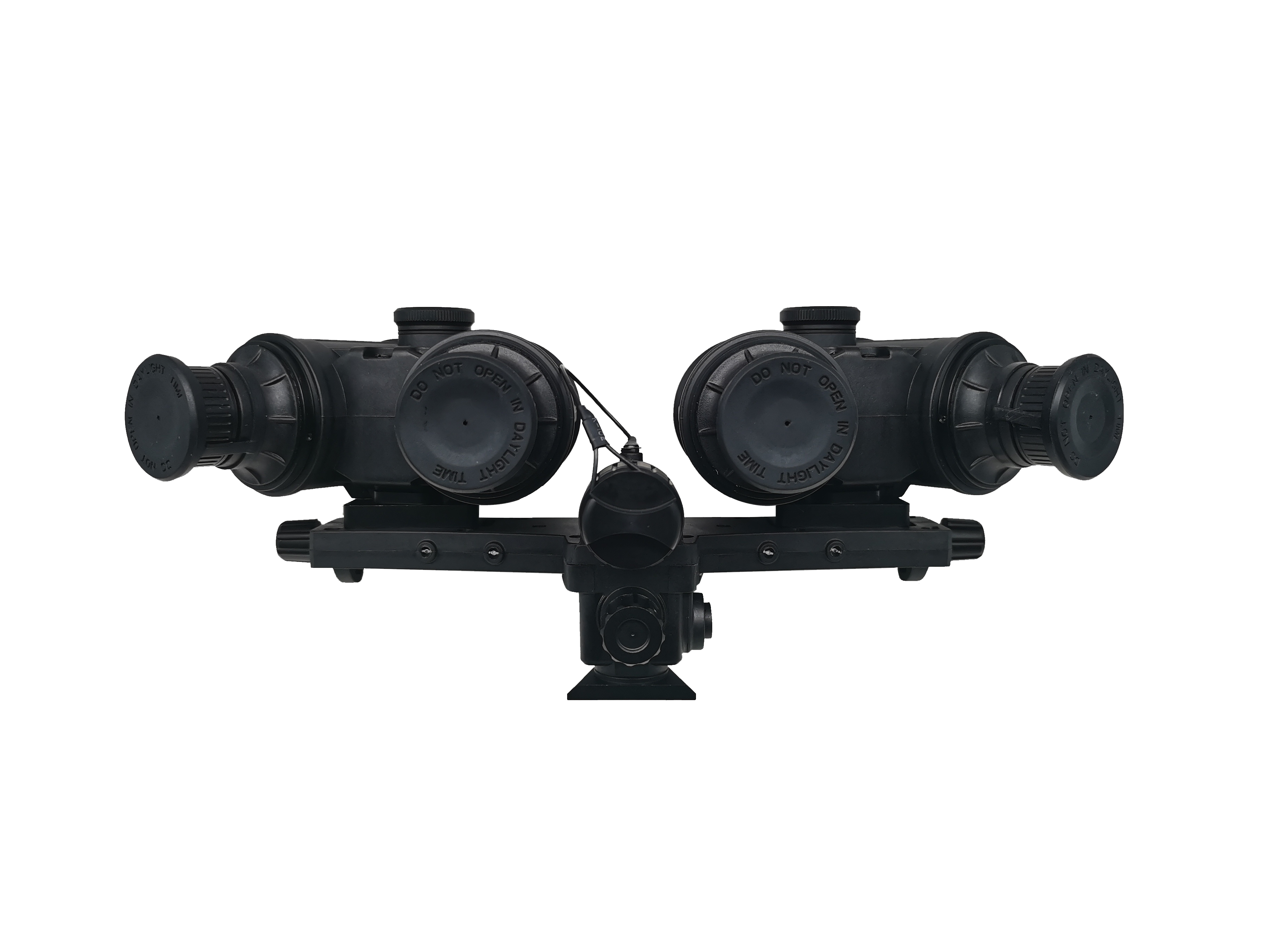

The two right and two left tubes are housed in merged assemblies and are hung from a bridge, giving operators interpupillary adjustment options. They can also be easily removed and operated as independent hand held viewers. The IPD of the two system can be adjusted on the helmet mount.

• Battery type: Lithium batteries CR123Ax1
• Power: <0.2W
• Voltage range: 2.6-4.2V
• Battery capacity: 800-3200 maH
• Working time: 30-80H
• Control type: On/IR/Auto
• Magnification: 1X
• FOV: 120+/-2 degree(horizontal) & 50+/-2 degree(vertical)

• Eye relief & aperture: 25-40mm & 8mm
• Diopter range: Approx. +0.5 to -2.5 degrees
• Parallelism of optical axes: Under 0.1 degrees
• Optical aperture: F1.18 22.5mm
• Optical MTF: 120LP/mm
• Optical distortion: 1% Max
• Relative Illumination: Over 75%
• Lens coating: FMC
• Focus range: 0.25M-unlimited
• Rollover detection: Solid non-contact automatic
• IR: 850nm 20mW
• Indicators: IR and Low battery
• Dimension: 155x136x83
• Weight: 780g(without battery)
• Environmental protection: IP65 (IP67 possible on request)

Available on demand - 3 week lead time
