TATOU'S PVS-14

Sale price$5,442.51 CAD

Tax excluded. Shipping calculated at checkout

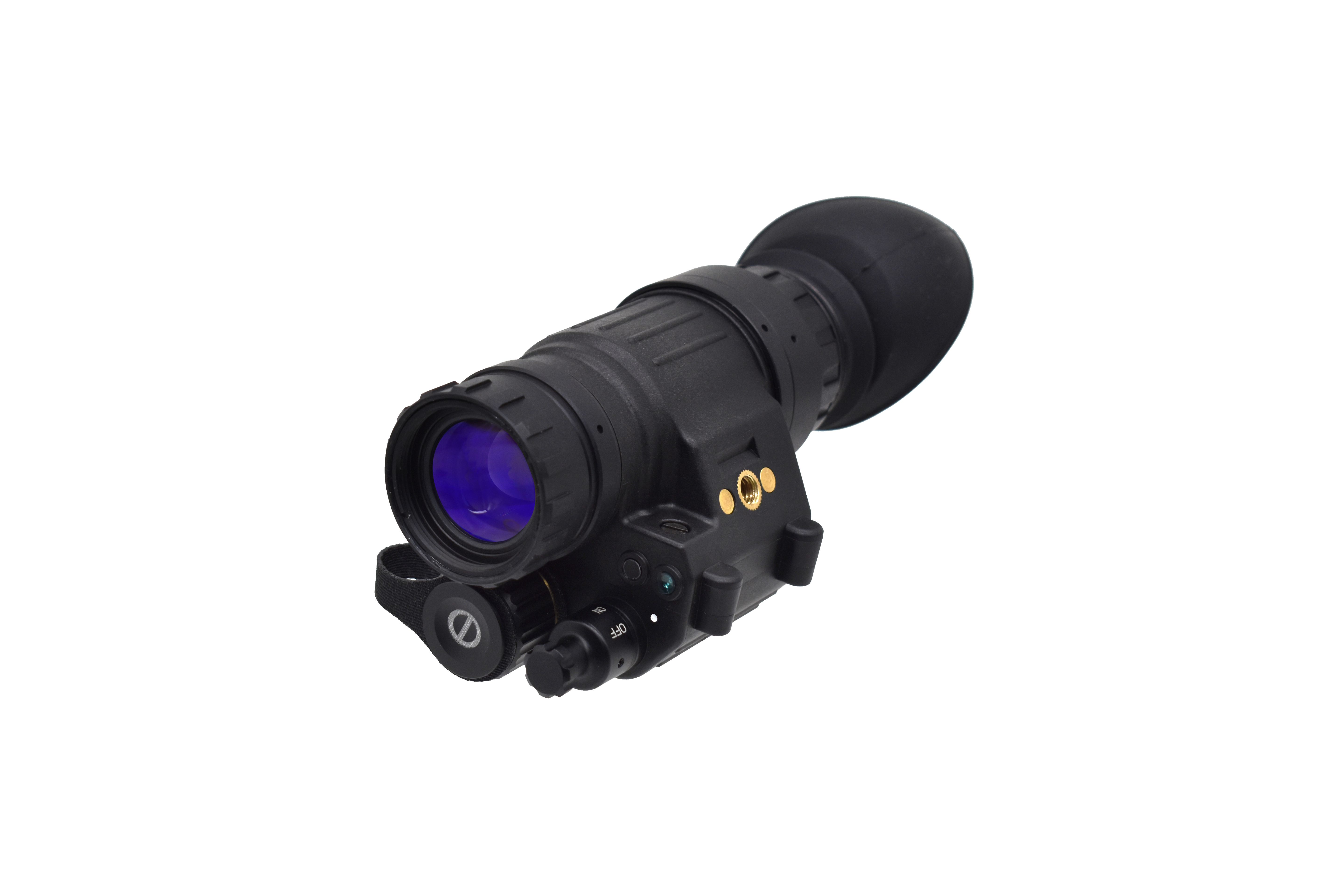

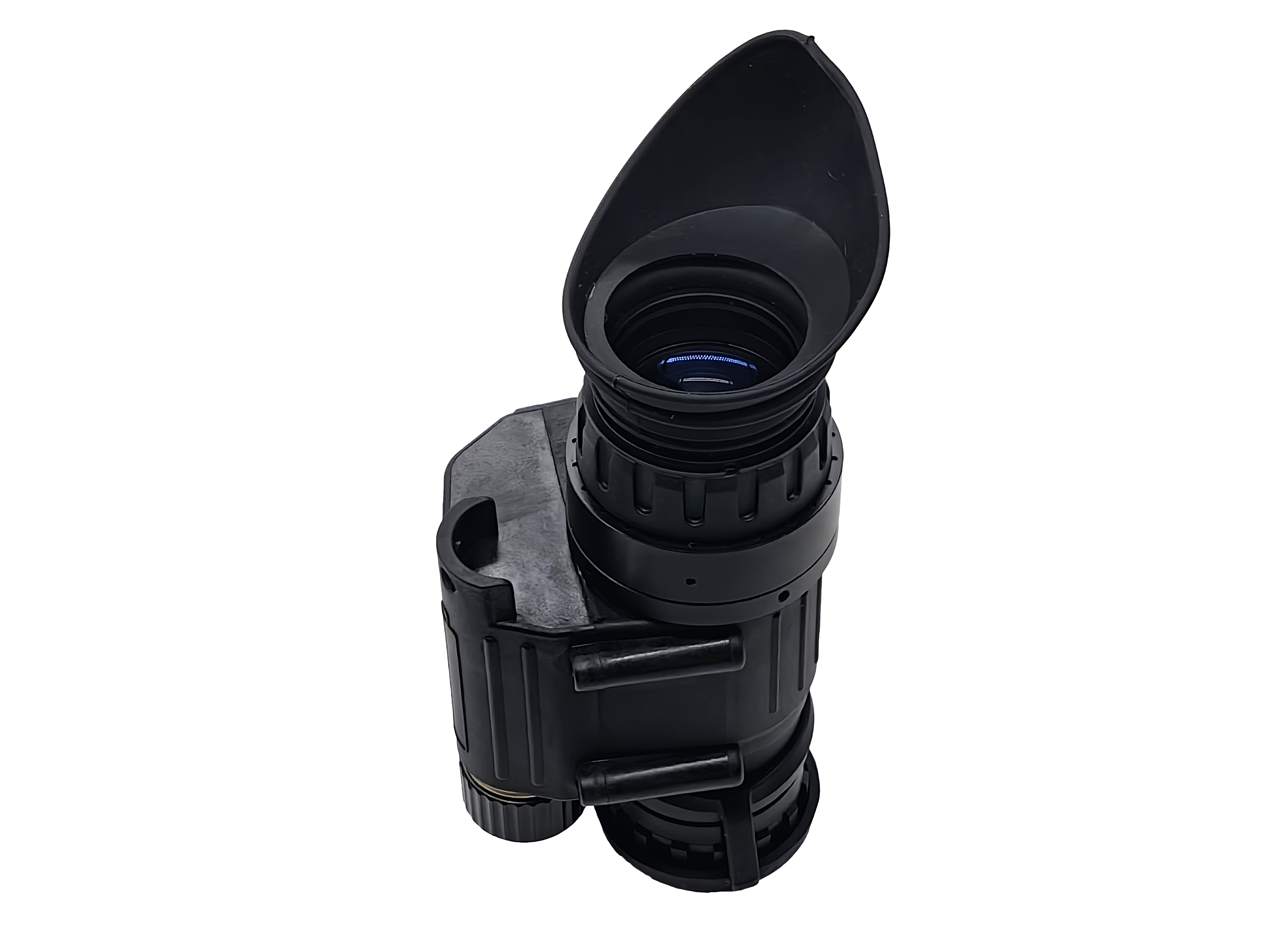

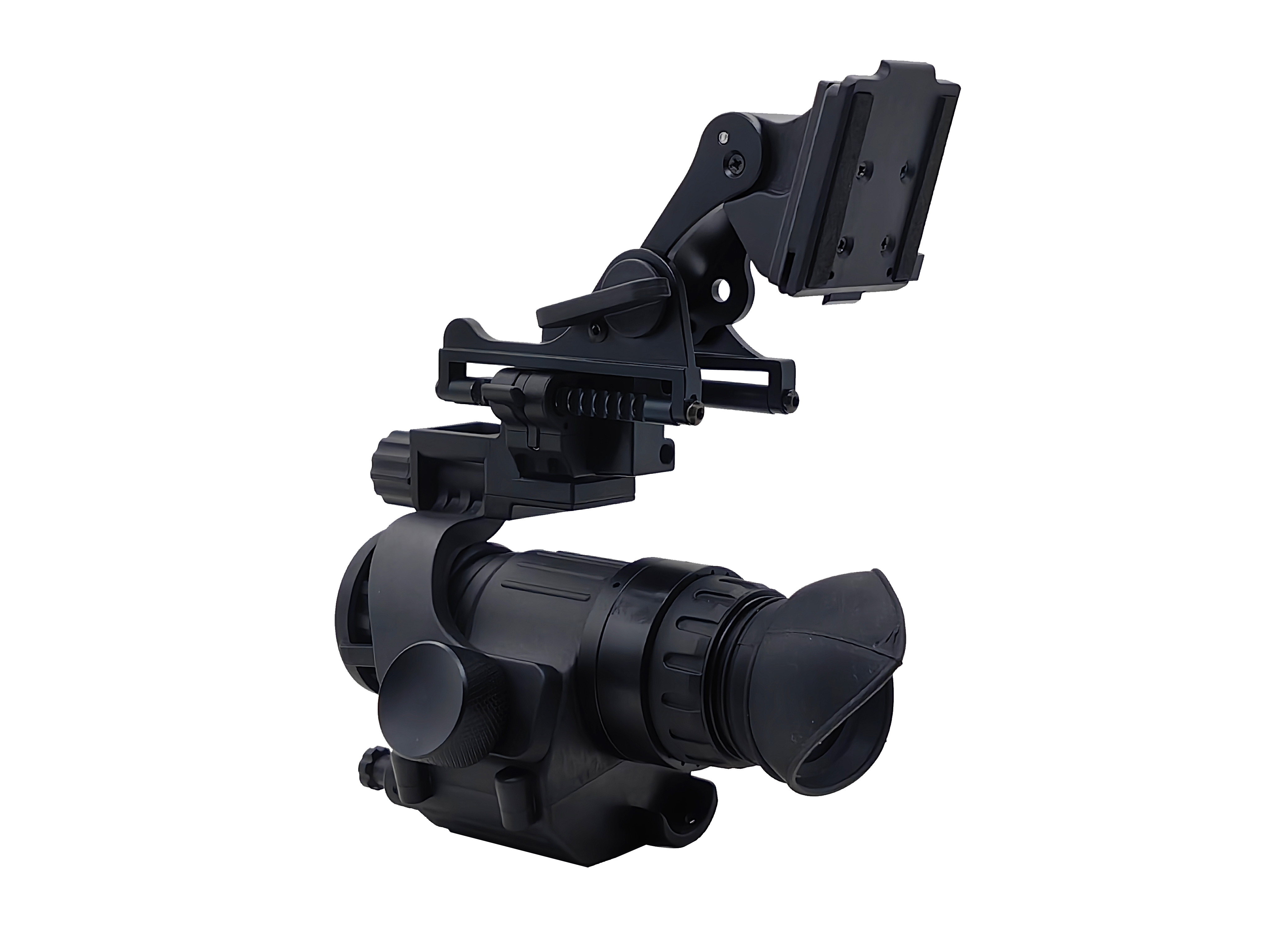

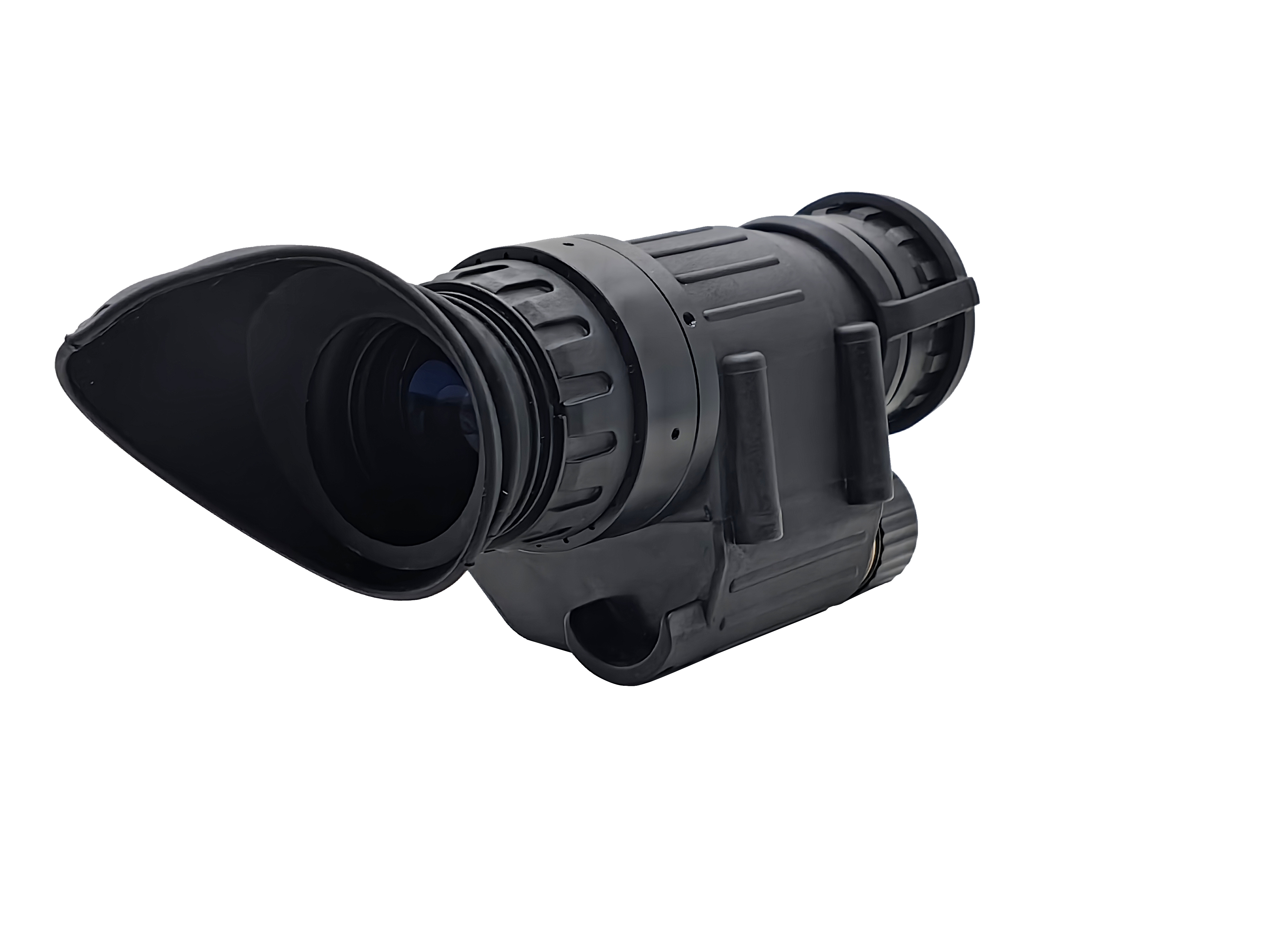

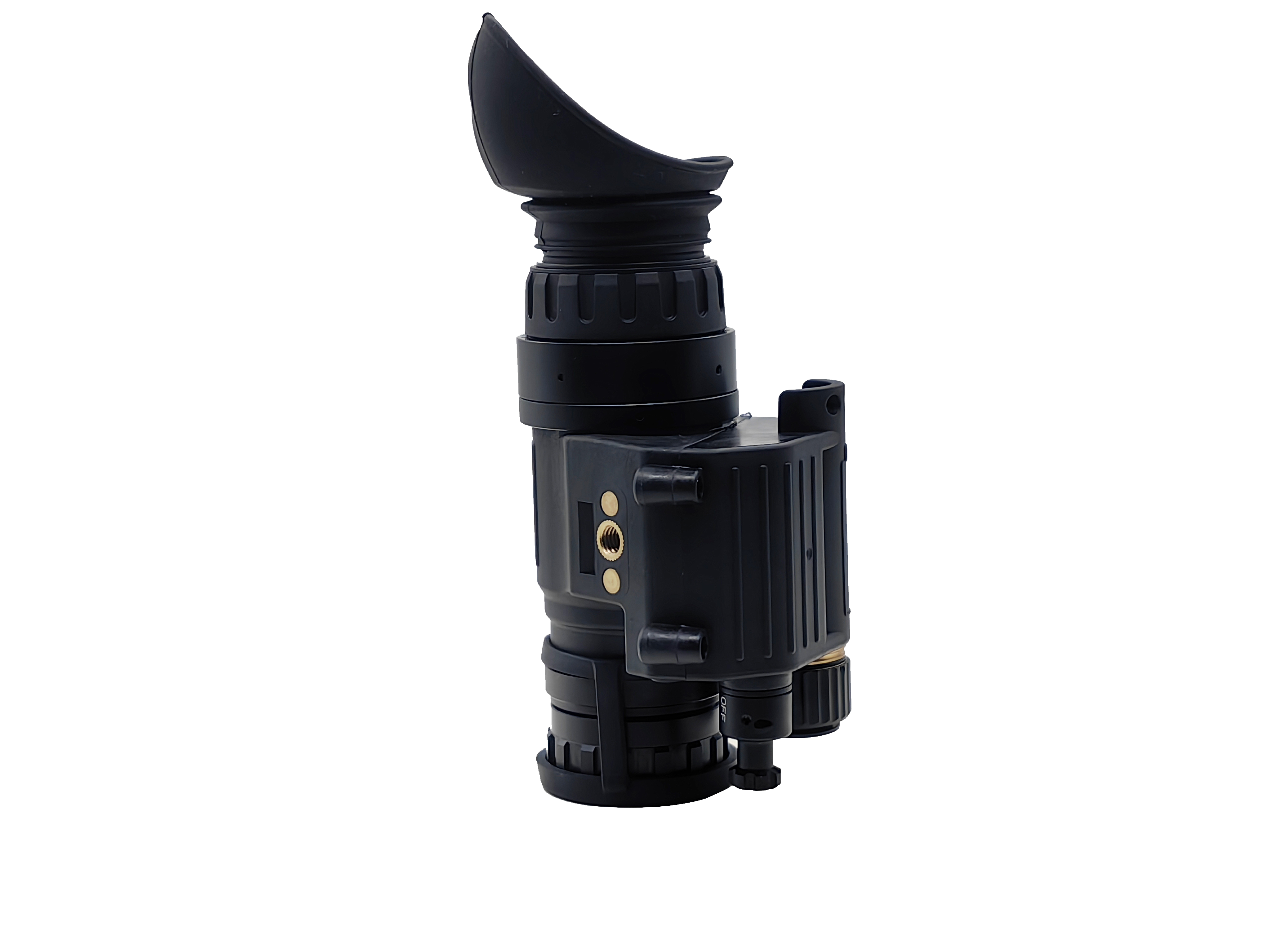

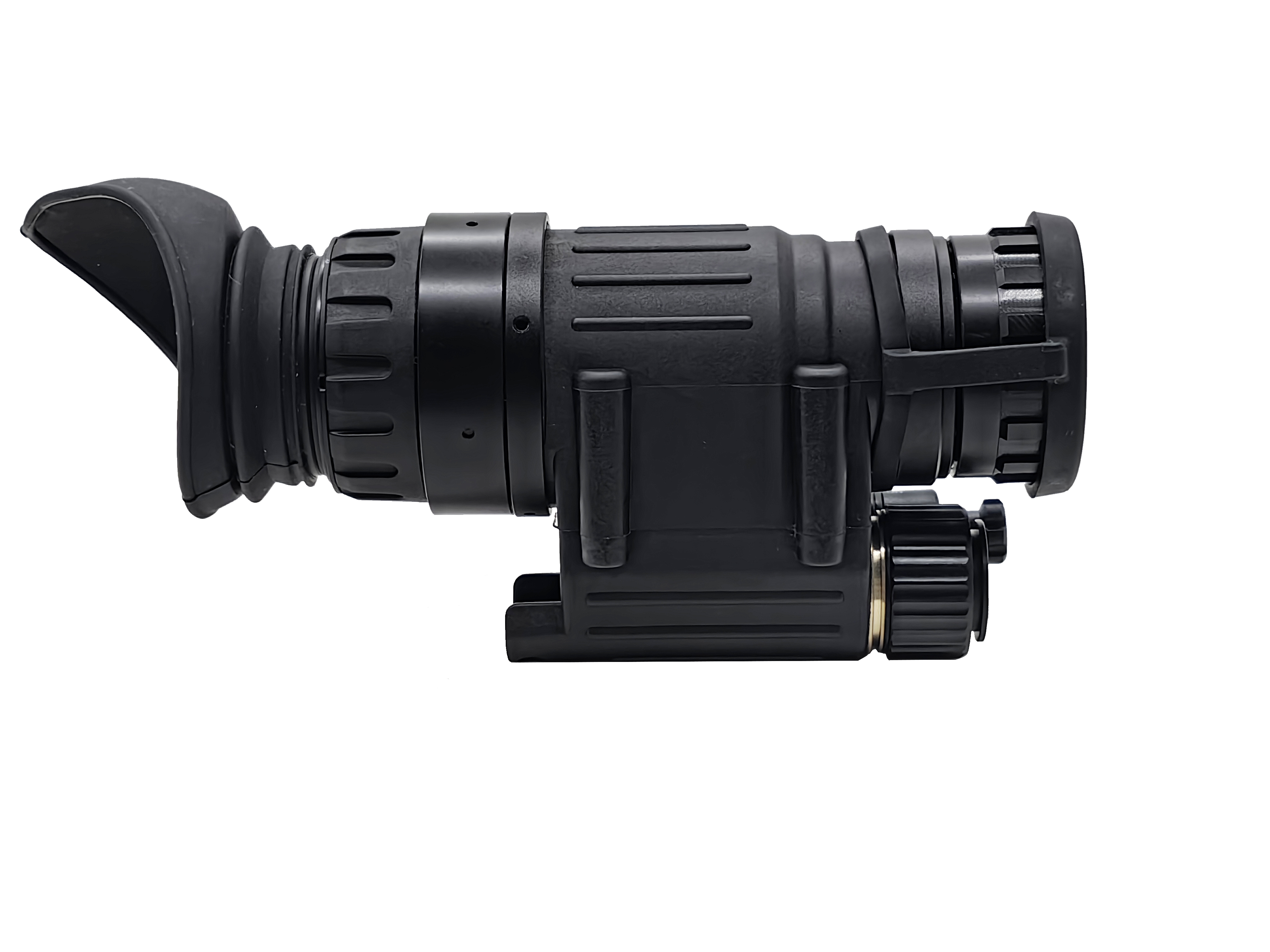

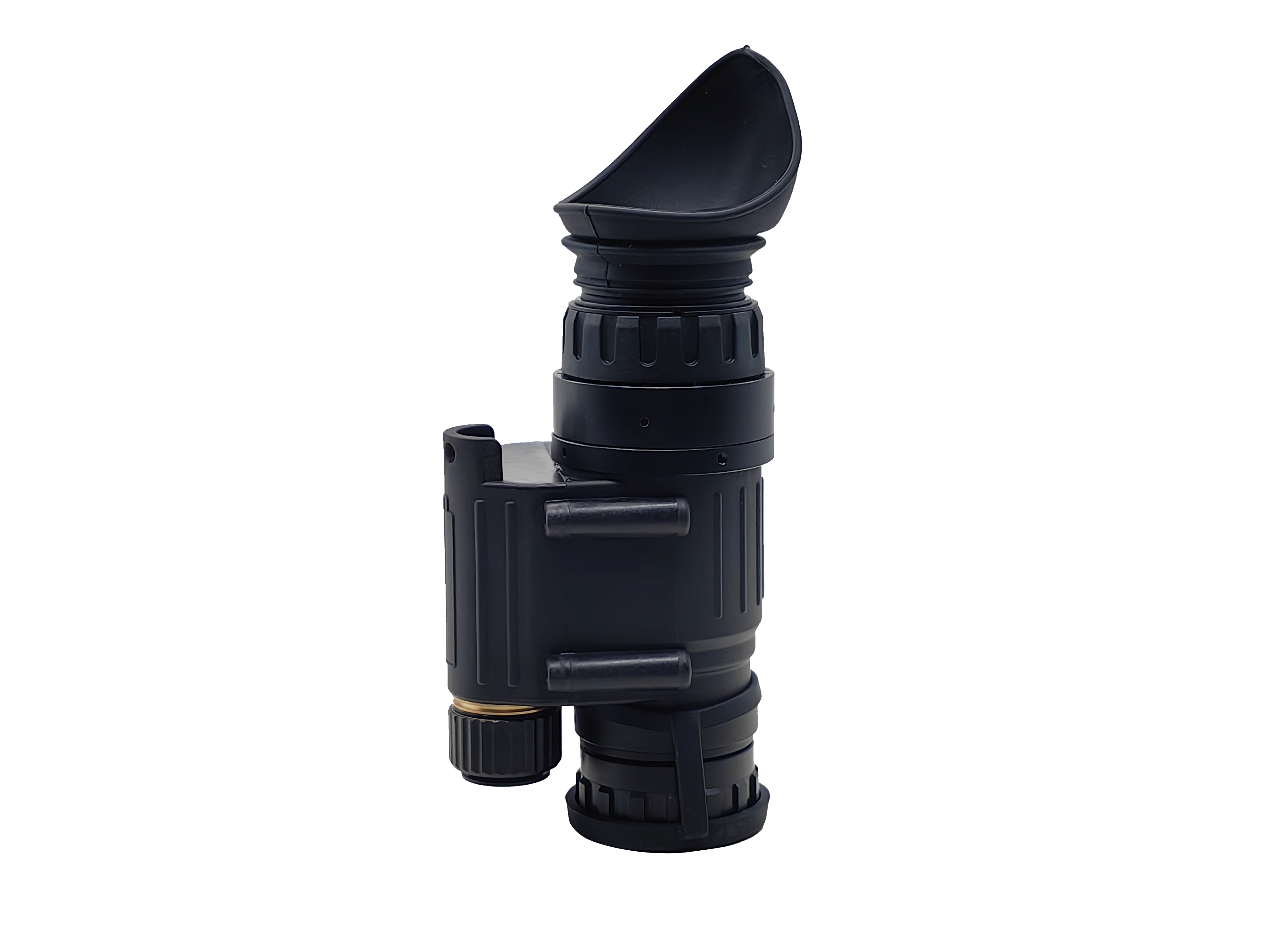

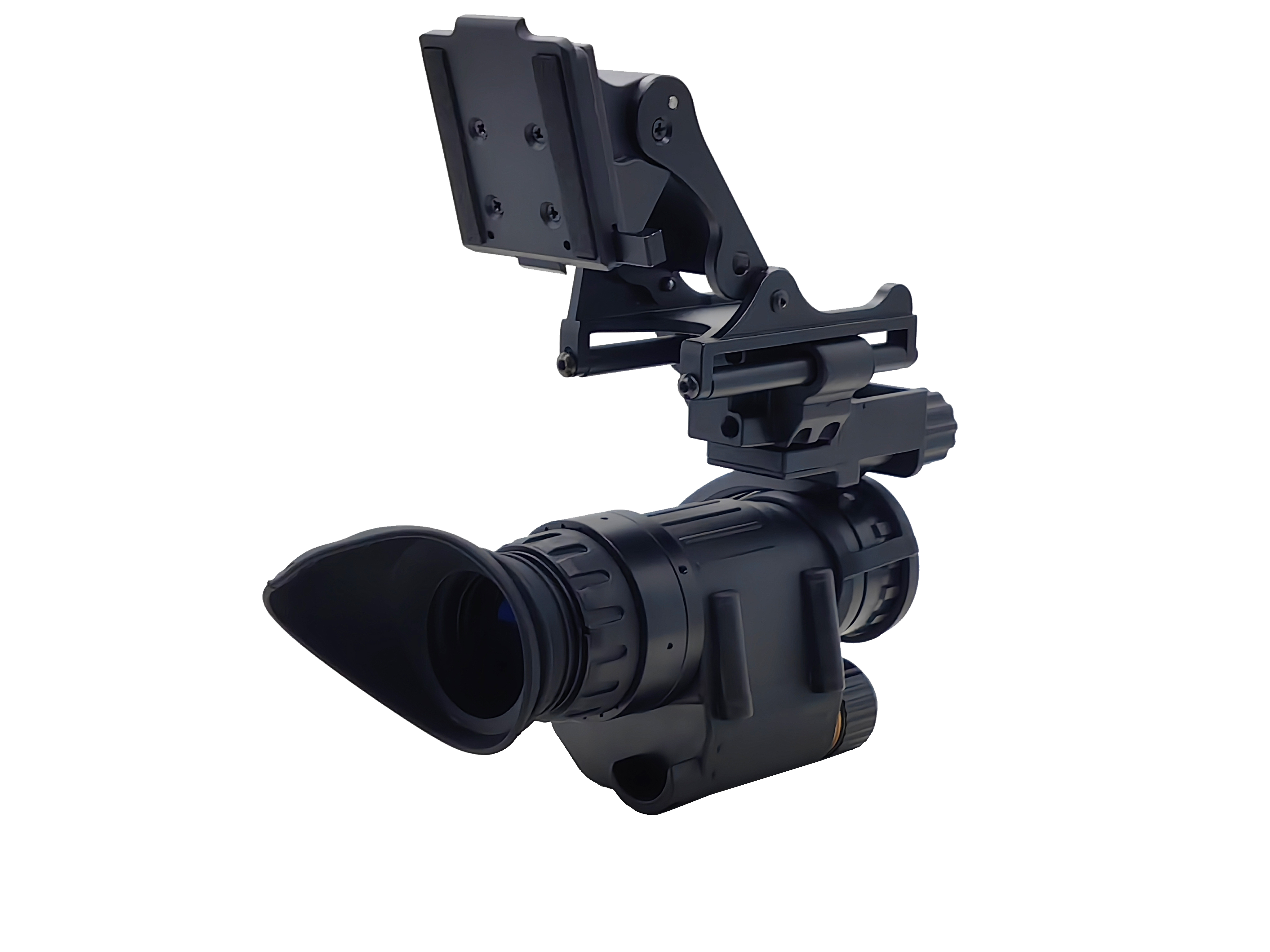

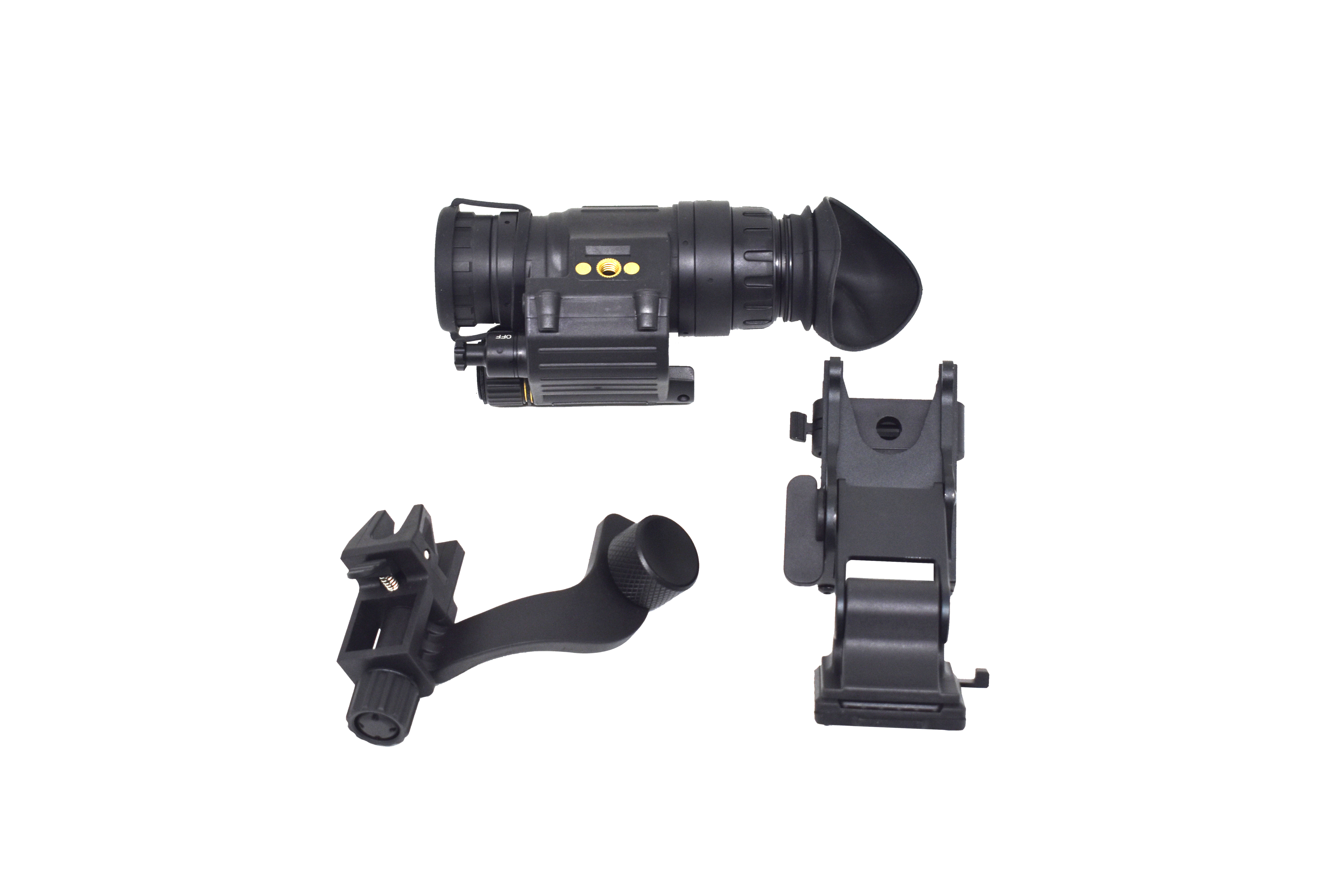

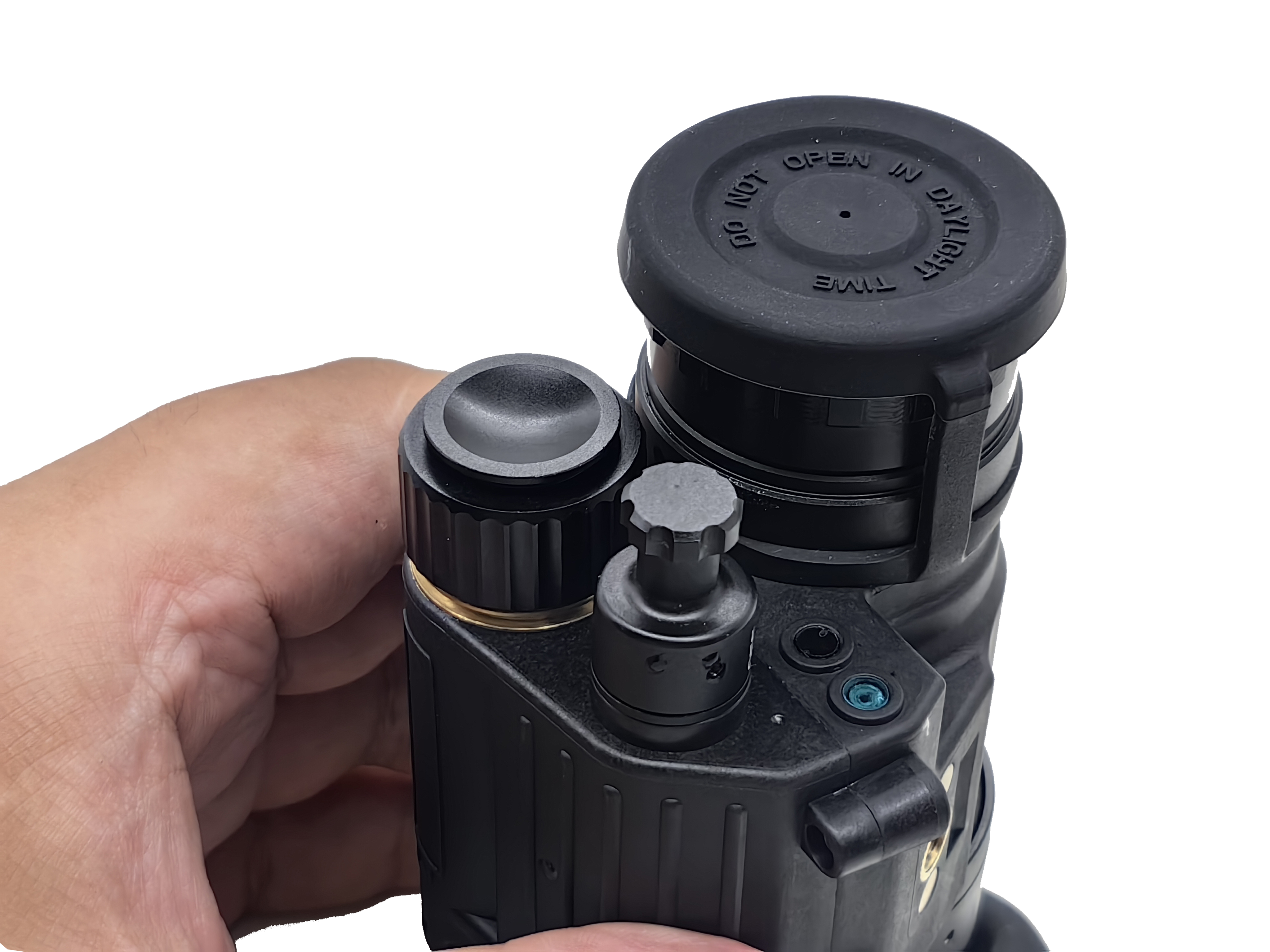

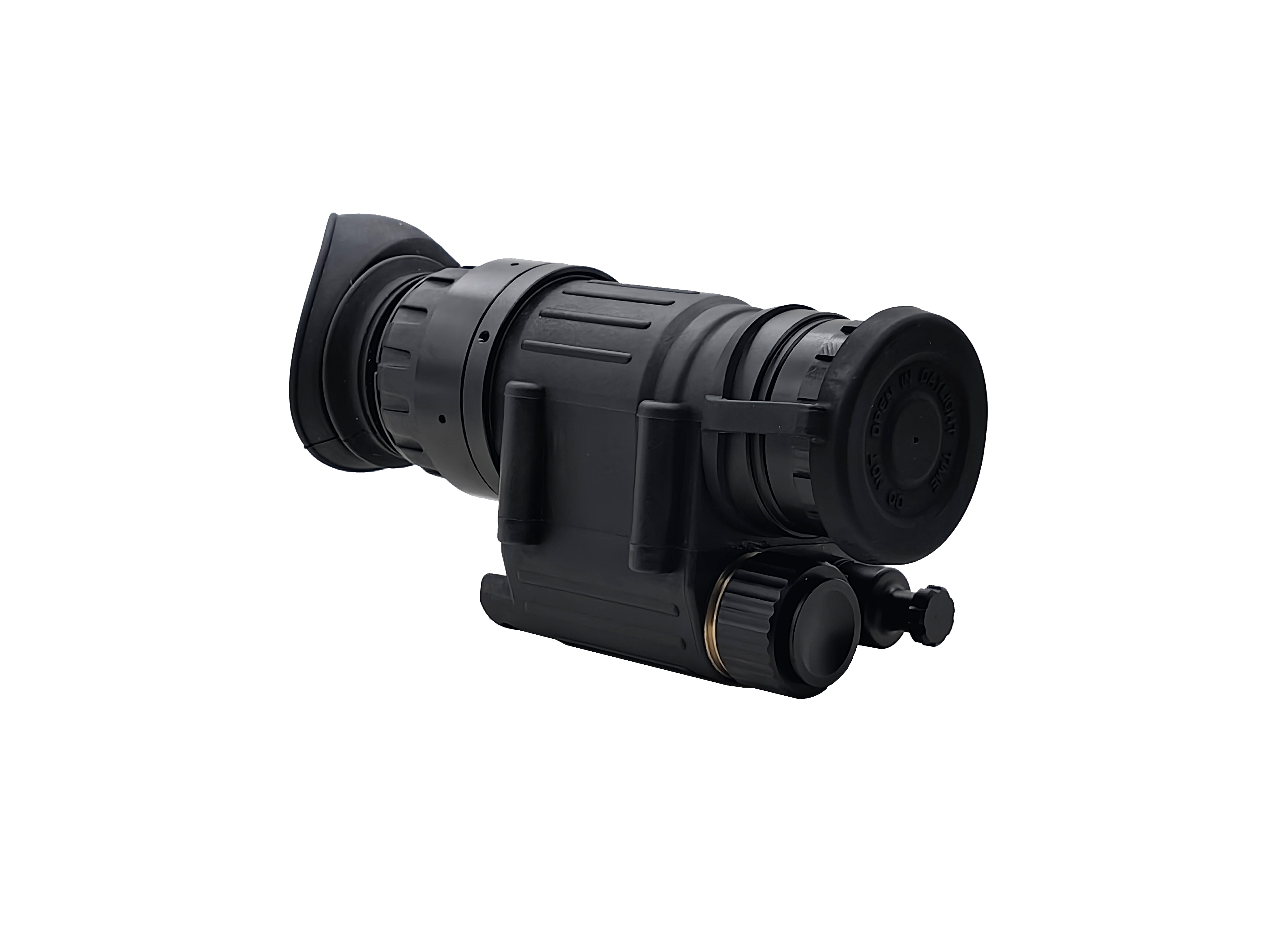

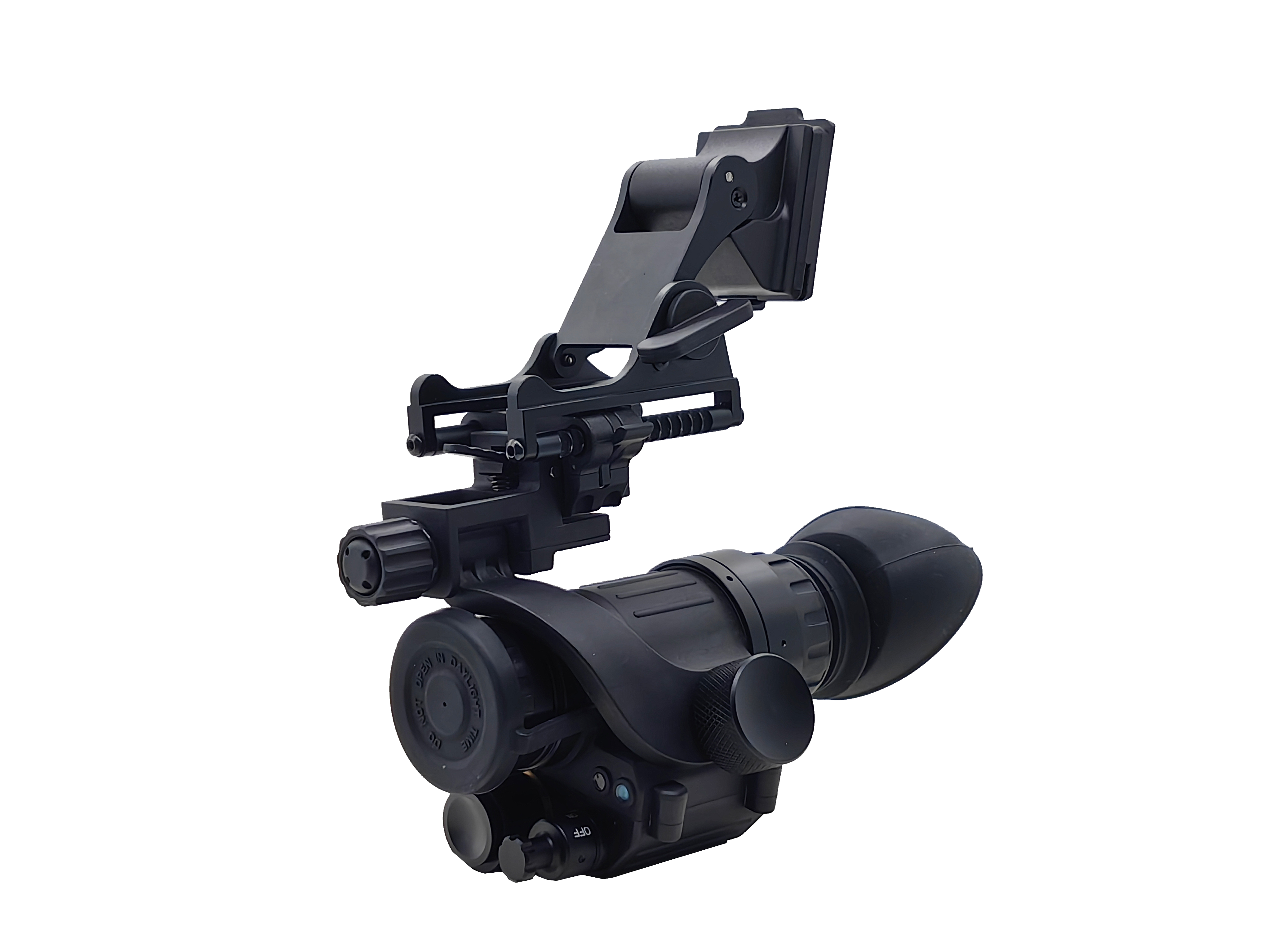

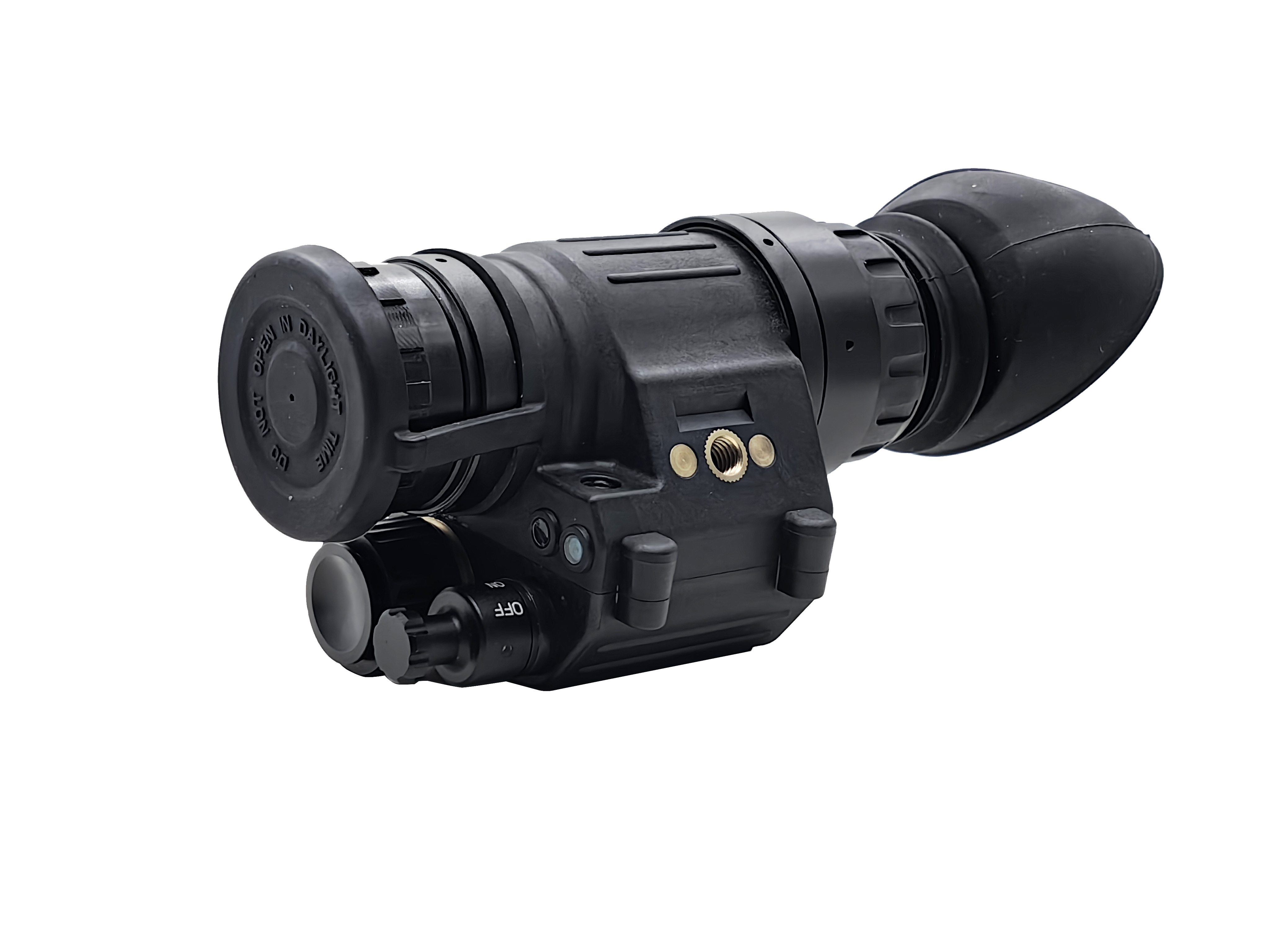

Tatou's PVS-14 NVG is a high-performance military head mounted night vision monocular, which has a large field of view, high definition, no distortion, lightweight, high strength. It is the ideal choice for military night equipment.

Choose between our range of resolutions from Field of Merit (FOM) 1400+ to 2000+.

You can choose between Field of Vision (FOV) 40 or 50 degree.

The magnification can be changed by installing a magnifier lens, 3X and 5X magnifier lens can be offered. It has built-in infrared illuminator and an auto-gain system.

It has built-in IR indicator and low battery indicator.

The product can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night without lighting. It is equipment for public security departments, armed police forces, special police forces, and guarding patrols.

  • Rotating test: Auto, flip up auto shut off
  • Battery type: Lithium batteries CR123Ax1
  • Power: <0.1W
  • Voltage range: 2.6-4.2V
  • Battery capacity: 500-800 maH
  • Working time: 60-100H
  • Control type: On/IR/Auto
  • Magnification: 1X
  • FOV: 40+/-2 degree & 50+/-2 degree
  • Eyepiece diameter: 30mm
  • Eye relief & aperture: 25-40mm & 9mm
  • Diopter range: -6 to 4 degrees or -4 to 6 degrees
  • Parallelism of optical axes: Under 0.05 degrees
  • Optical aperture: F1.18 22.5mm
  • Optical MTF: 120LP/mm
  • Optical distortion: 0.5% Max
  • Relative Illumination: Over 75%
  • Lens coating: FMC
  • Focus range: 0.25M-unlimited
  • Rollover detection: Solid non-contact automatic
  • IR: 850nm 20mW
  • Indicators: IR and Low battery
  • Dimension: 108x55x70 without eyecup and lens cover
  • Weight: 255g(without battery)
  • Enviromental rating: IP65 (IP67 available)

Available on demand - 3 week lead time

Tube: Green G2+
Field of Merit (FOM): 1400+
FOV & IP rating: 40 degree & IP65
